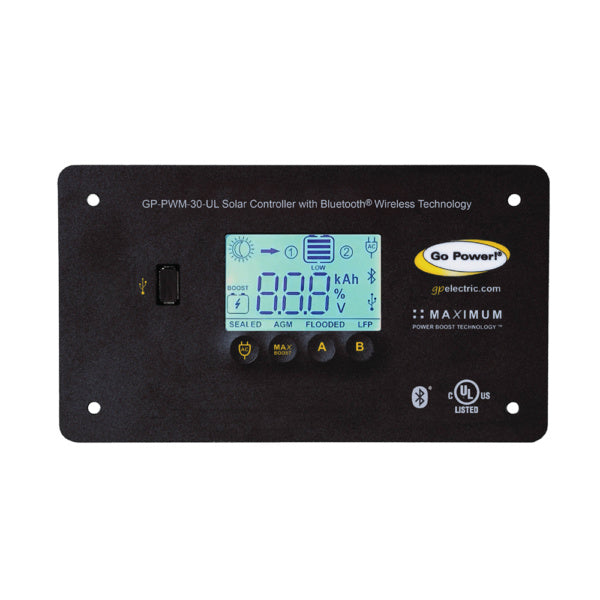

Go Power 30 Amp Solar Controller Dual Bank Bluetooth – GP-PWM-30-UL

This Bluetooth® enabled 30 Amp digital solar controller protects the life of your solar battery, whether it’s Lithium, AGM, or Lead Acid.
Features:
Dual Bank capable
Bluetooth ready; used the Go Power! Connect app (Click here for more info)
12 volt flush mounted PV charge controller rated for a continuous solar current input of 30 amps.
Uses pulse width modulation (PWM) technology
Unique four stage charging system with optional equalize setting, to charge and protect your battery bank
LCD digital display that shows solar array charge current, system battery voltage and battery capacity
Built-in USB charge port
Connects up to 600 watts of solar
Charges 1 or 2 battery banks
Remote on/off control of select Go Power! ISW inverters
5 year warranty
Using Go Power! Connect, you can connect to your PWM-30-UL controller to:
Set the battery type and charging profile
Turn your compatible Go Power! ISW Inverter on or off
Toggle Maximum Power Boost mode
View essential battery stats, including:
Battery Voltage
PV Charging Current
Battery State of Charge (SOC)
Maximum Power Boost Technology
Our 30 Amp Digital Solar Controller features Maximum Power Boost Technology (MPBT). This allows you to override the normal charging algorithm of the solar controller to ‘boost’ the solar charge, which is ideal at the end of the daylight to ensure batteries are topped up for the evening. Performance of the solar controller will not be affected if MPBT function is not utilized.

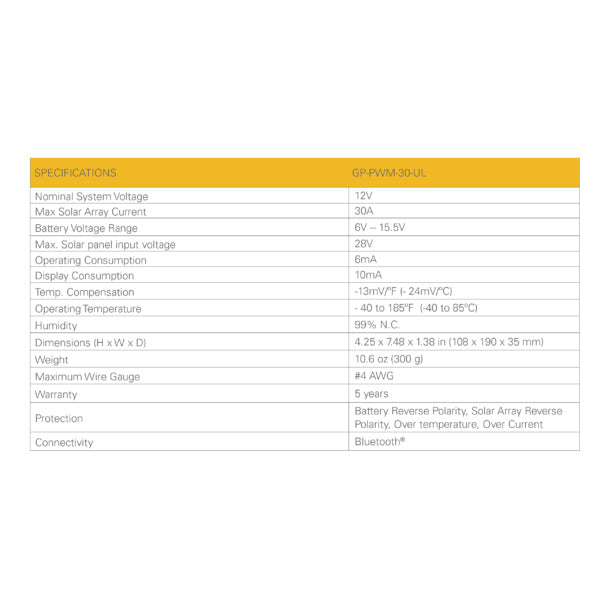

Specs
Nominal System Voltage
12V
Max Solar Array Current
30A
Battery Voltage Range
6V — 15.5V
Max. Solar panel input voltage
28V
Operating Consumption
6mA
Display Consumption
10mA
Temp. Compensation
-13mV/ºF / – 24mV/ºC
Operating Temperature
– 40 to 185ºF / – 40 to 85ºC
Humidity
99% N.C.

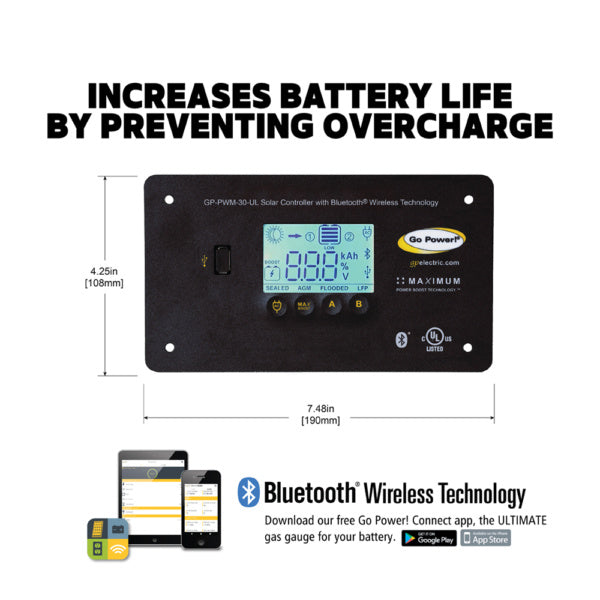

Dimensions (H x W x D):
4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm
Weight
10.6 oz; 300 g;
Maximum Wire Gauge:
#4 AWG
Warranty
5 years
Protection
Battery Reverse Polarity, Solar Array Reverse
Polarity, Over temperature, Over Current
Battery Charging Profile
Sealed/Gel
AGM
Flooded
LifePO4
Bulk Charge Voltage Set Point
14.1V
14.4V
14.4V
Disabled
Absorption Charge Voltage (30 min / day)
14.1V
14.4V
14.4V
14.4V
Max. Power Boost Charge Voltage:
Automatic (2h if V < 12.3V) 14.1V 14.4V 14.4V Enabled Max. Power Boost Charge Voltage: Manual (2h if activated) 14.1V 14.4V 14.4V Enabled Float Charge Voltage 13.7V 13.7V 13.7V 14.0V Equalize Charge Voltage (2h / 28 days or after V < 12.1V) Disabled Disabled 14.4V Disabled
