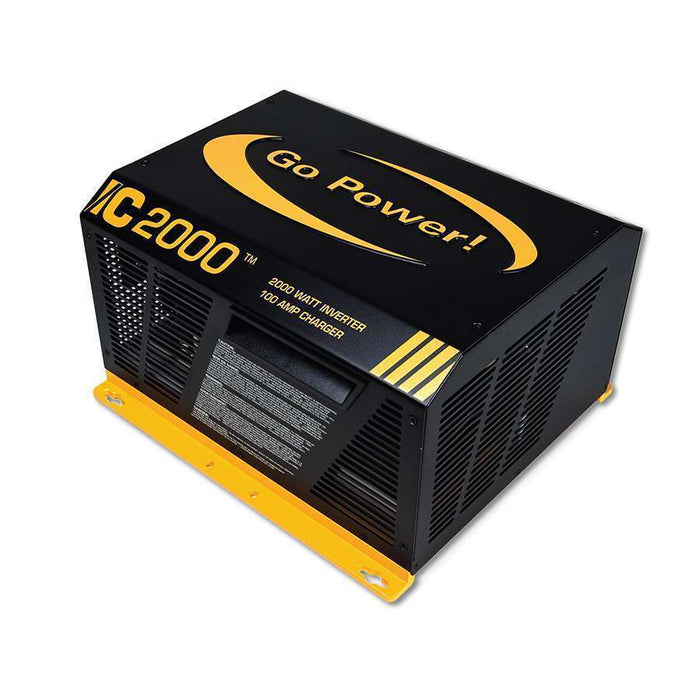

Go Power 2000W IC Series Inverter Charger

Go Power!’s IC Series 2000-watt Inverter Charger is an inverter, battery charger and transfer switch in one compact unit. The inverter charger is a 3-in-1 system combining an inverter, battery charger and automatic transfer switch. This saves space and simplifies installation by reducing the number of devices and cables to install.
While most inverter chargers offer a 30 amp transfer switch, the IC2000 provides two 50 amp legs. That means when connected to shore power 50 amp service (240V), you can draw up to 12,000 watts of power! The IC2000 is also compatible with 30 amp service.

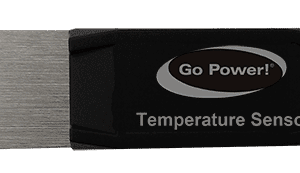

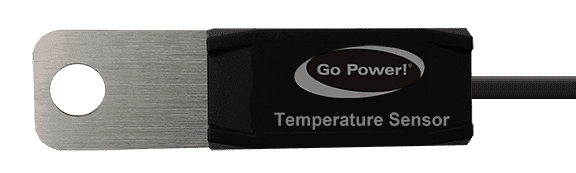

The IC2000 Includes a battery temperature sensor on a 25′ cable. One end mounts onto your battery and the other end plugs into the inverter charger. The temperature data is sent to the IC2000 which automatically adjusts voltage to maintain proper and healthy charging.

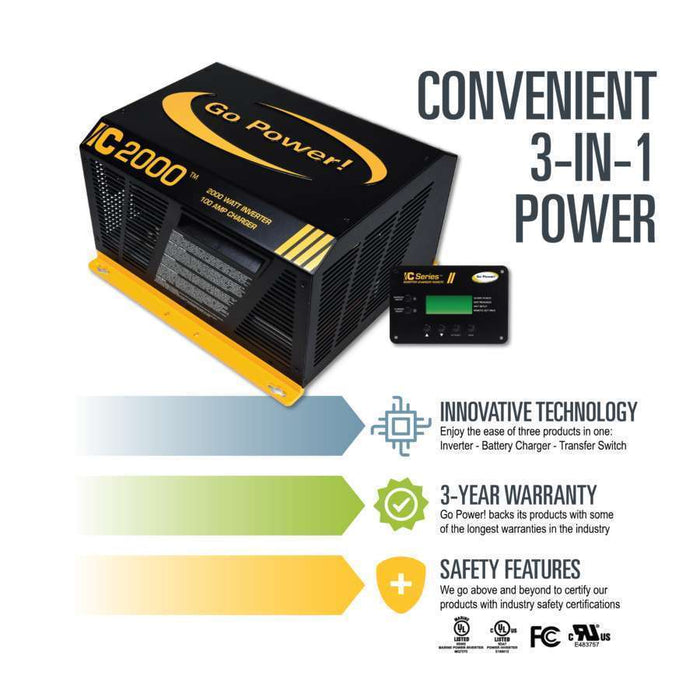

A 3-in-1 system combining an inverter, battery charger and automatic transfer switch, which saves space and simplifies installation.
Features
2000 watt pure sine wave inverter; 3400 watt surge (5 seconds)
High inverter efficiency – 90%
100 amp battery converter/charger
100 amp automatic transfer switch (50 amps per leg at 120V AC)
Built-in handles offers easier handling during installation
Power factor corrected
Industry standard protection features
Meets UL 1741 and UL 458 with marine supplement
3 year warranty

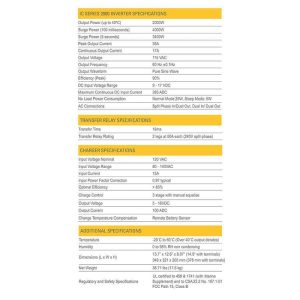

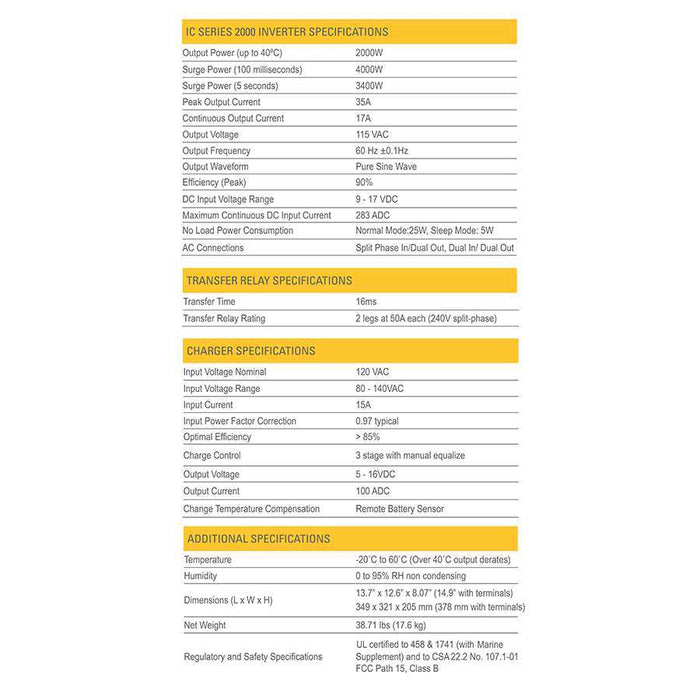

Output Power (up to 40ºC)
2000W
Surge Power (100 milliseconds)
4000W
Surge Power (5 seconds)
3400W
Peak Output Current
35A
Continuous Output Current
17A
Output Voltage
115 VAC
Output Frequency
60 Hz ±0.1Hz
Output Waveform
Pure Sine Wave
Efficiency (Peak)
90%
DC Input Voltage Range
9 – 17 VDC
Maximum Continuous DC Input Current
283 ADC
No Load Power Consumption
Normal Mode:25W,
Sleep Mode: 5W

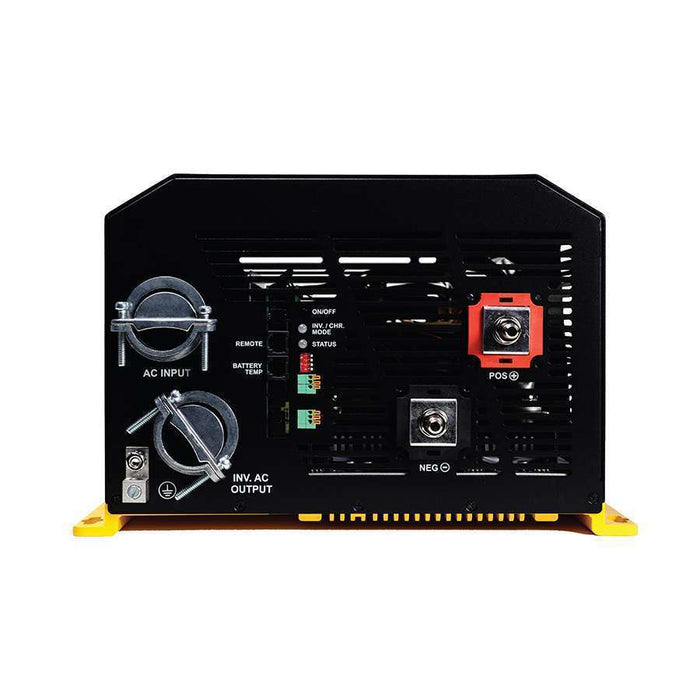

AC Connections
Split Phase In/Dual Out,
Dual In/ Dual Out
Input Voltage Nominal
120 VAC
Input Voltage Range
80 – 140VAC
Input Current
15A
Input Power Factor Correction
0.97 typical
Optimal Efficiency
> 85%
Charge Control
3 stage with manual equalize
Output Voltage
5 – 16VDC
Output Current
100 ADC
Change Temperature Compensation
Remote Battery Sensor
Transfer Time
16ms
Transfer Relay Rating
2 legs at 50A each (120V each leg)
Temperature
-20˚C to 40˚C
(40˚C – 60˚C output derates)
Humidity
0 to 95% RH non condensing

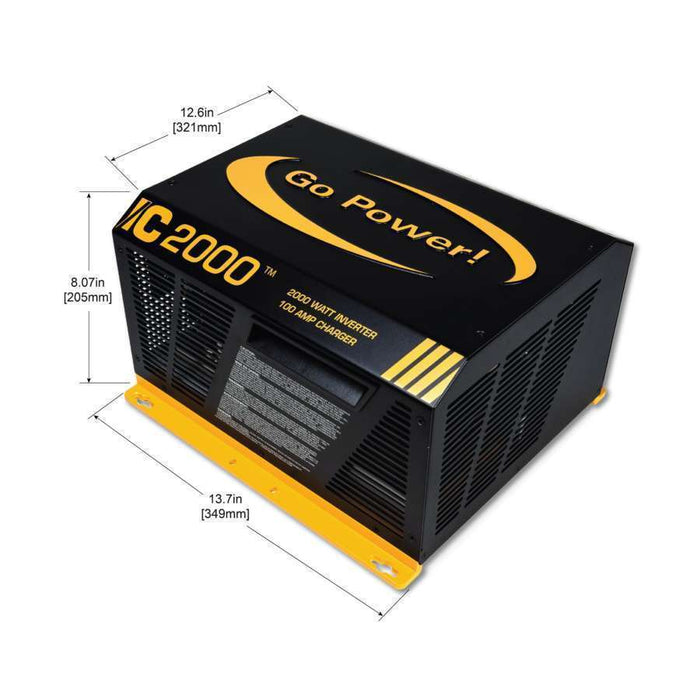

Dimensions (L x W x H)
13.7” x 12.6” x 8.07” (14.9” with terminals)
349 x 321 x 205 mm (378 mm with terminals)
Net Weight
38.71 lbs (17.6 kg)
Regulatory and Safety Specifications
UL certified to 458 & 1741 (with Marine Supplement) and to CSA 22.2 No. 107.1-01 FCC Path 15, Class B
